Ignitros
Mike Rodgers
  • Frequent Builder
  • Someone Noticed
Member since
Aviation Maintenance Technician, Quality Control
Spokane Valley, United States
Build Views
2,356
Build Approvals
36
Fistbumps
40
Followers
6
Posts
6

Best Build

Ignitros EVO XL

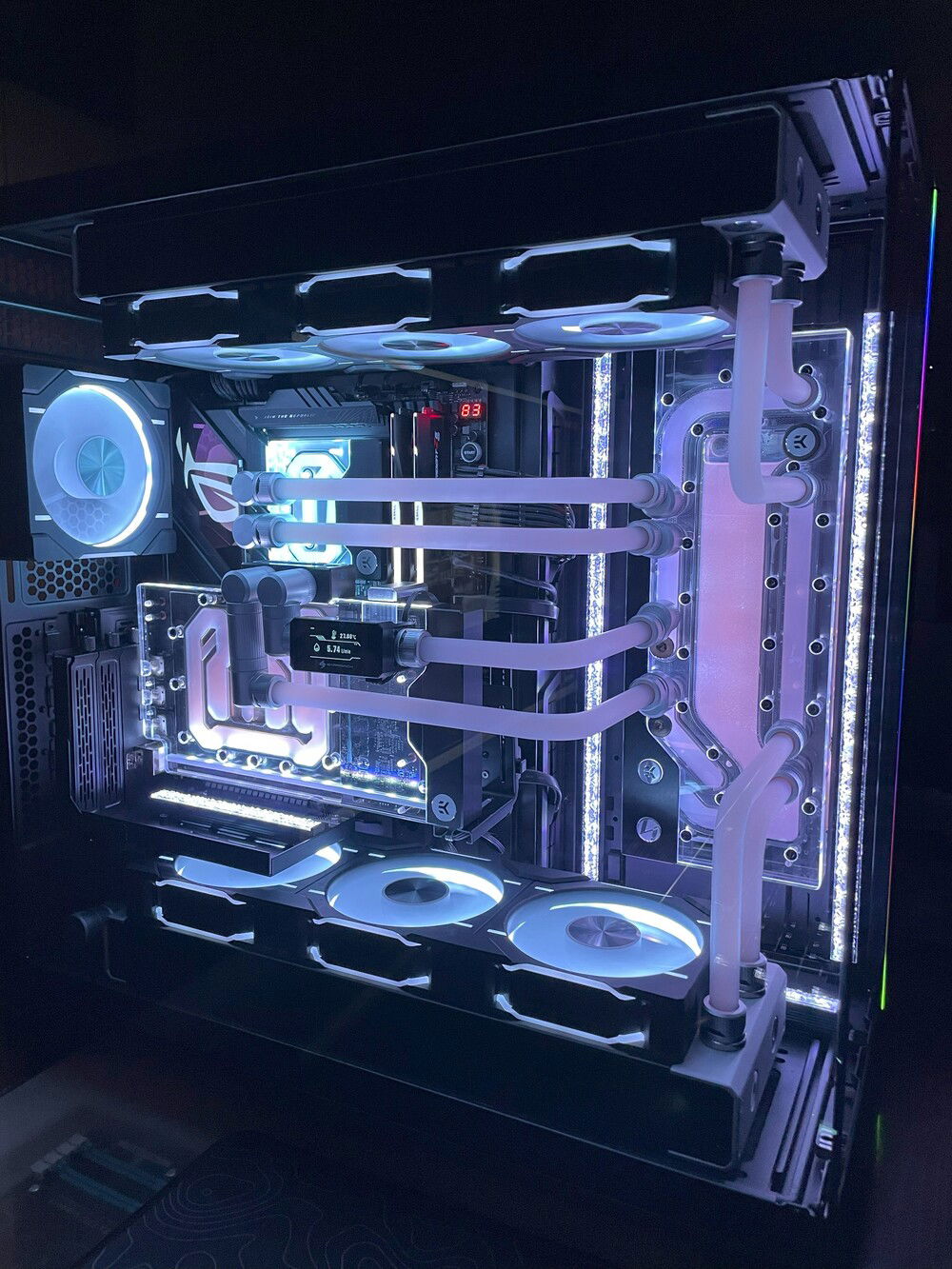

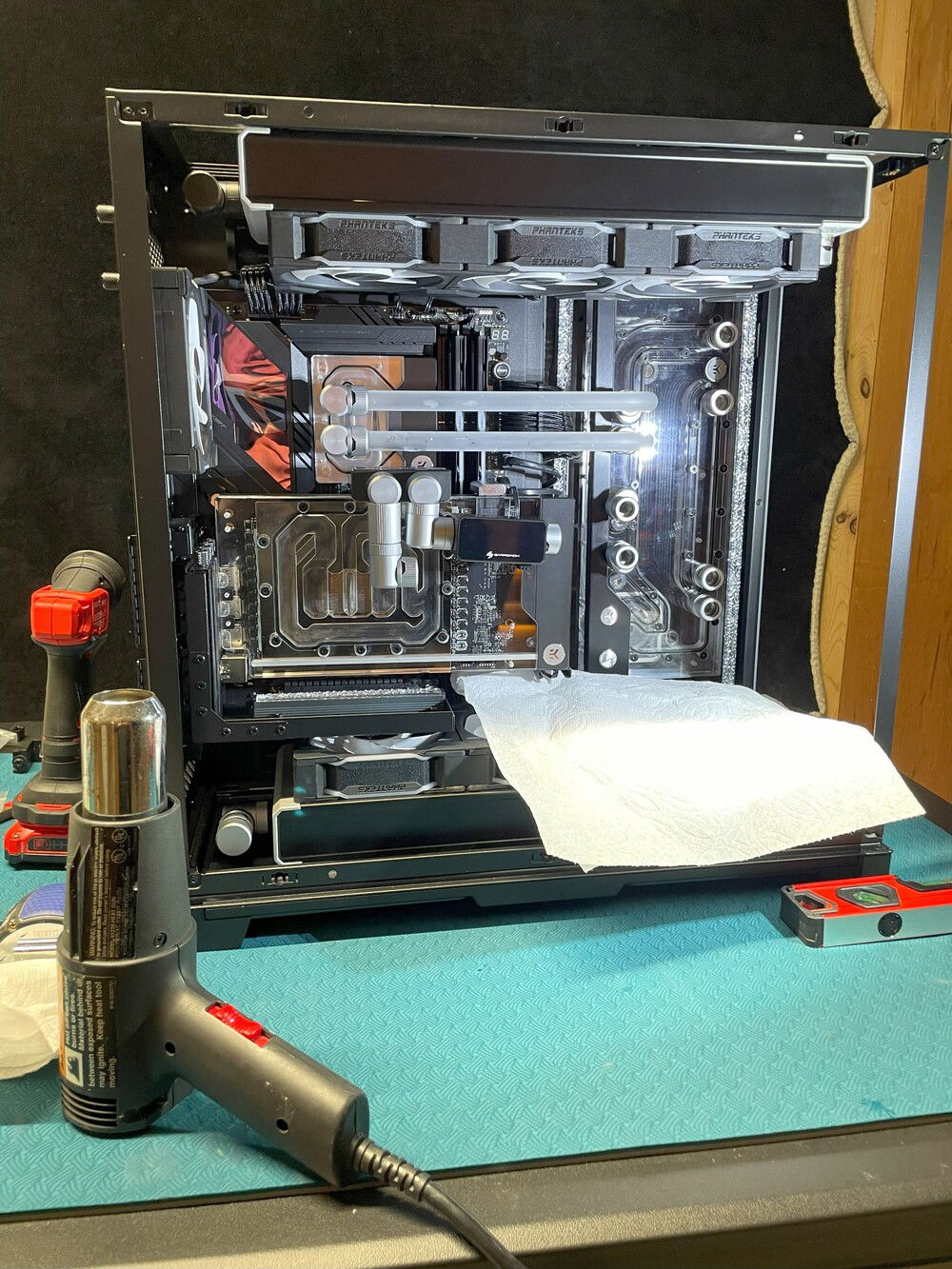

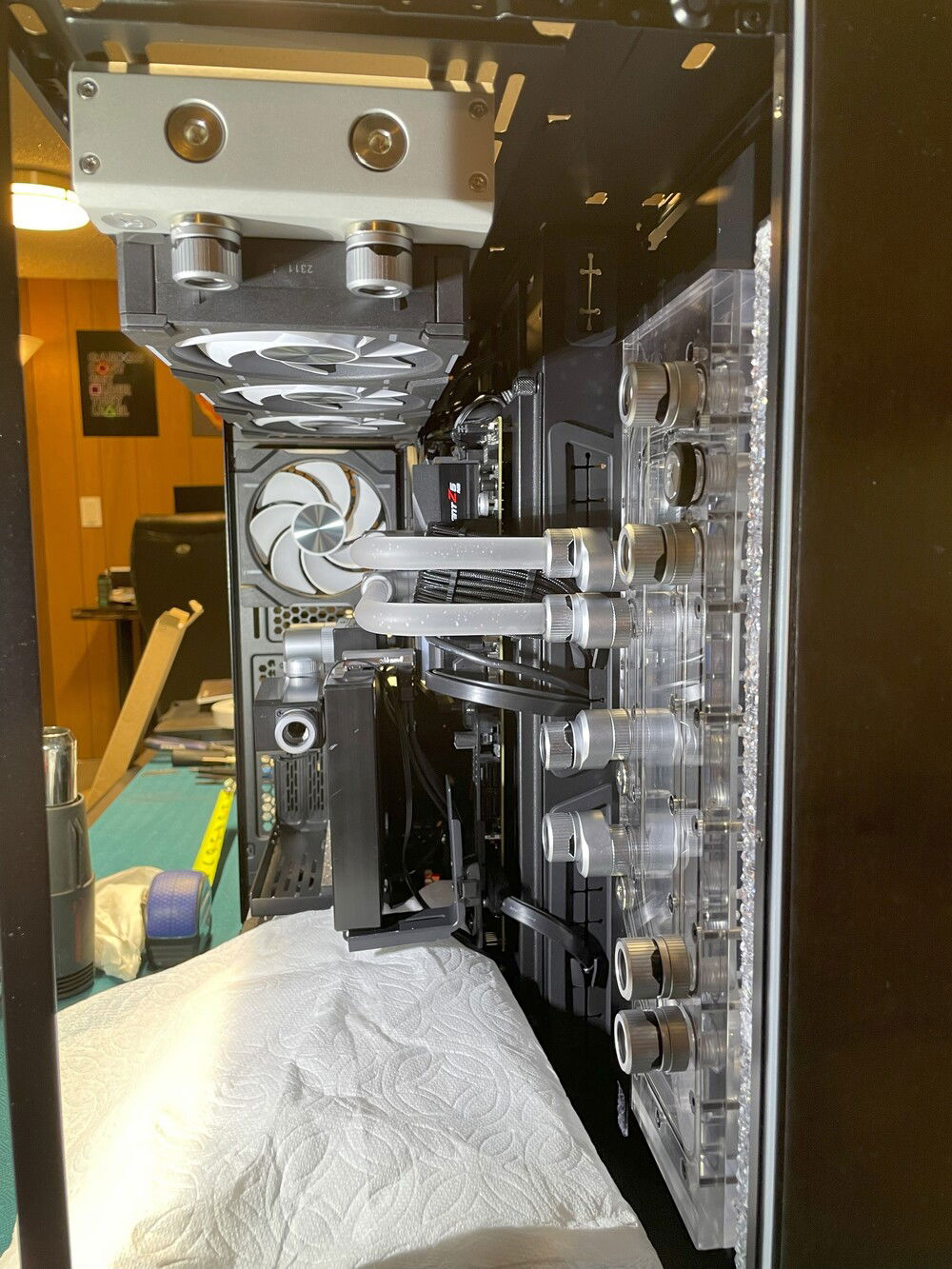

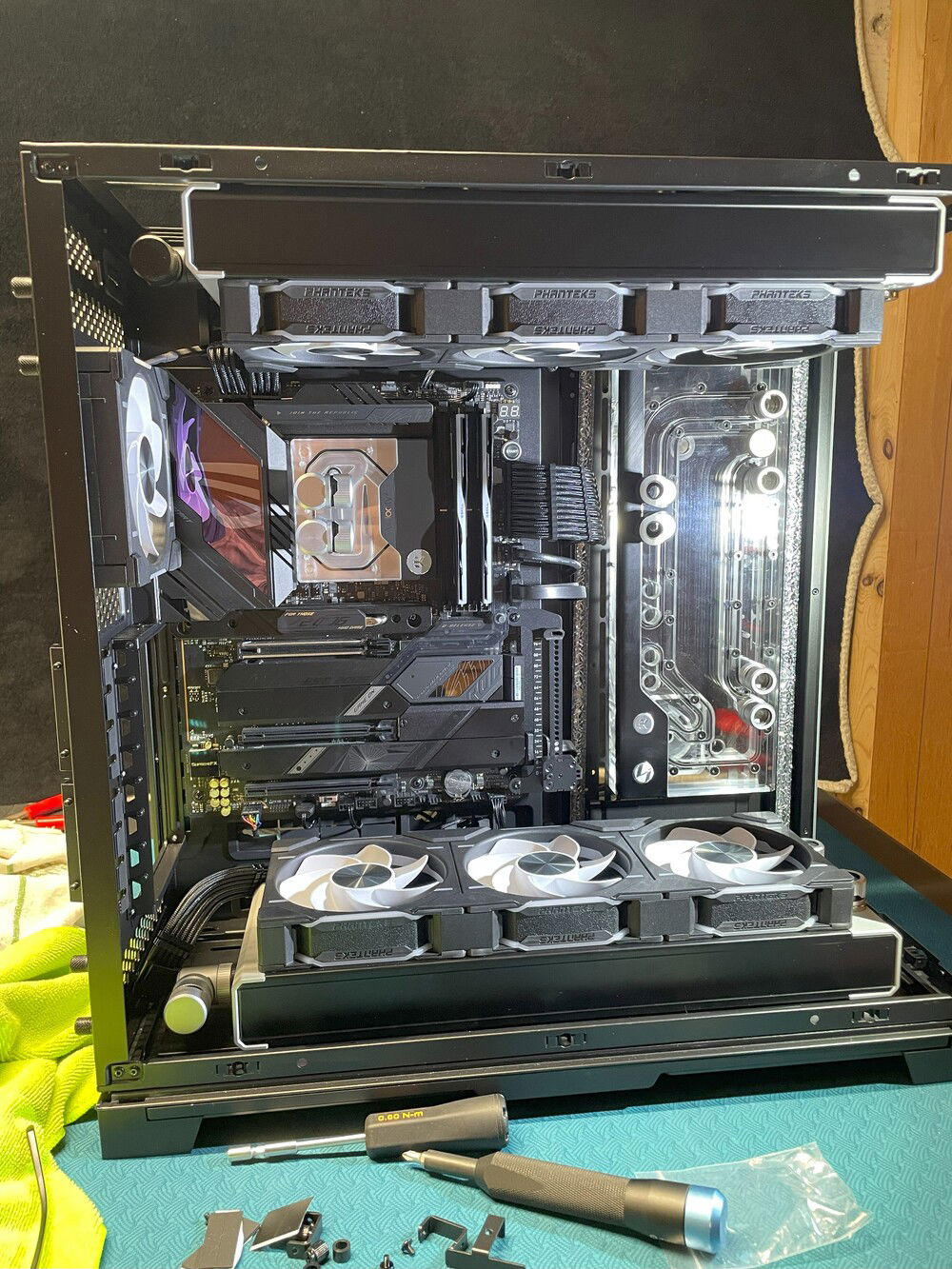

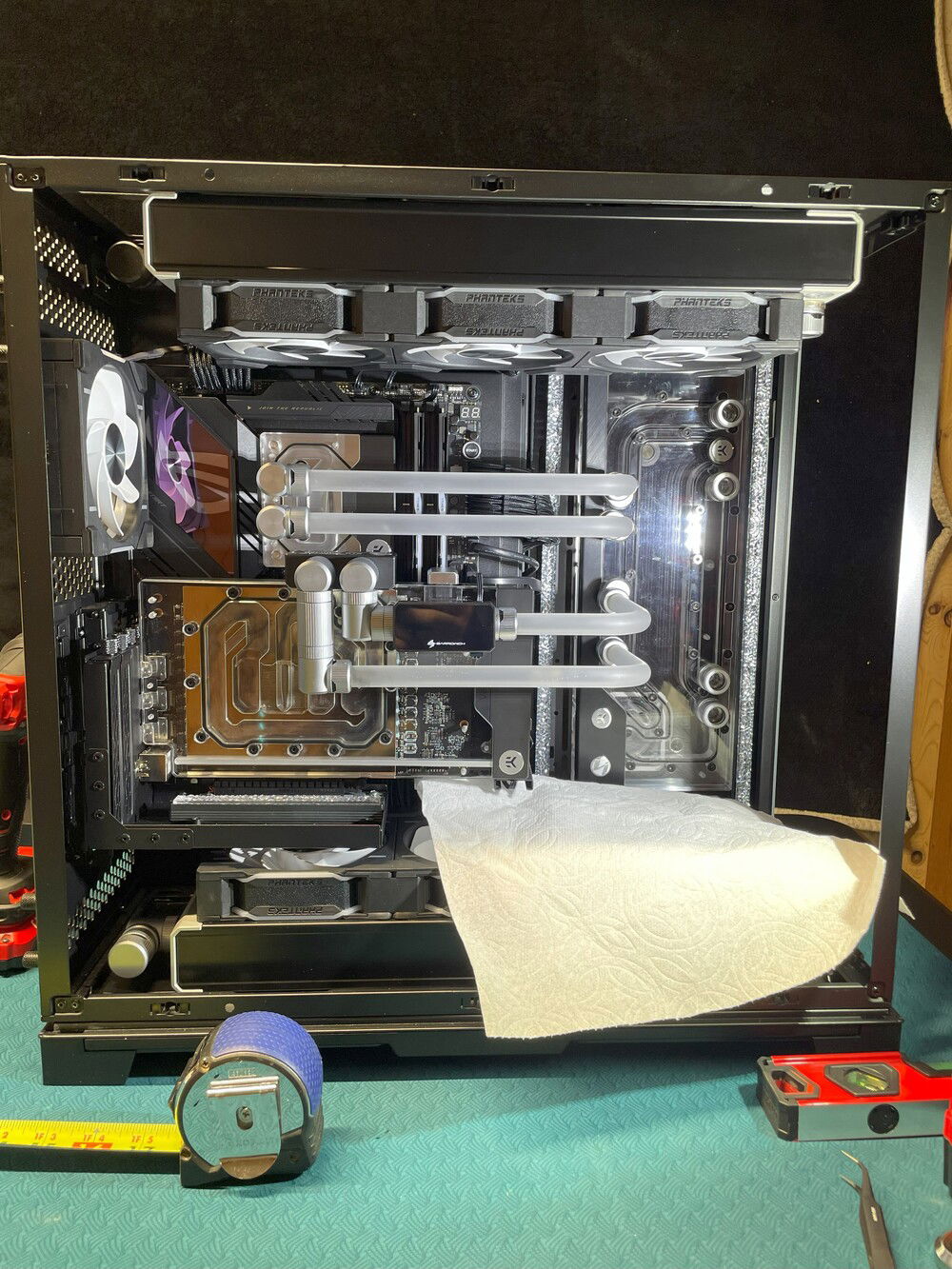

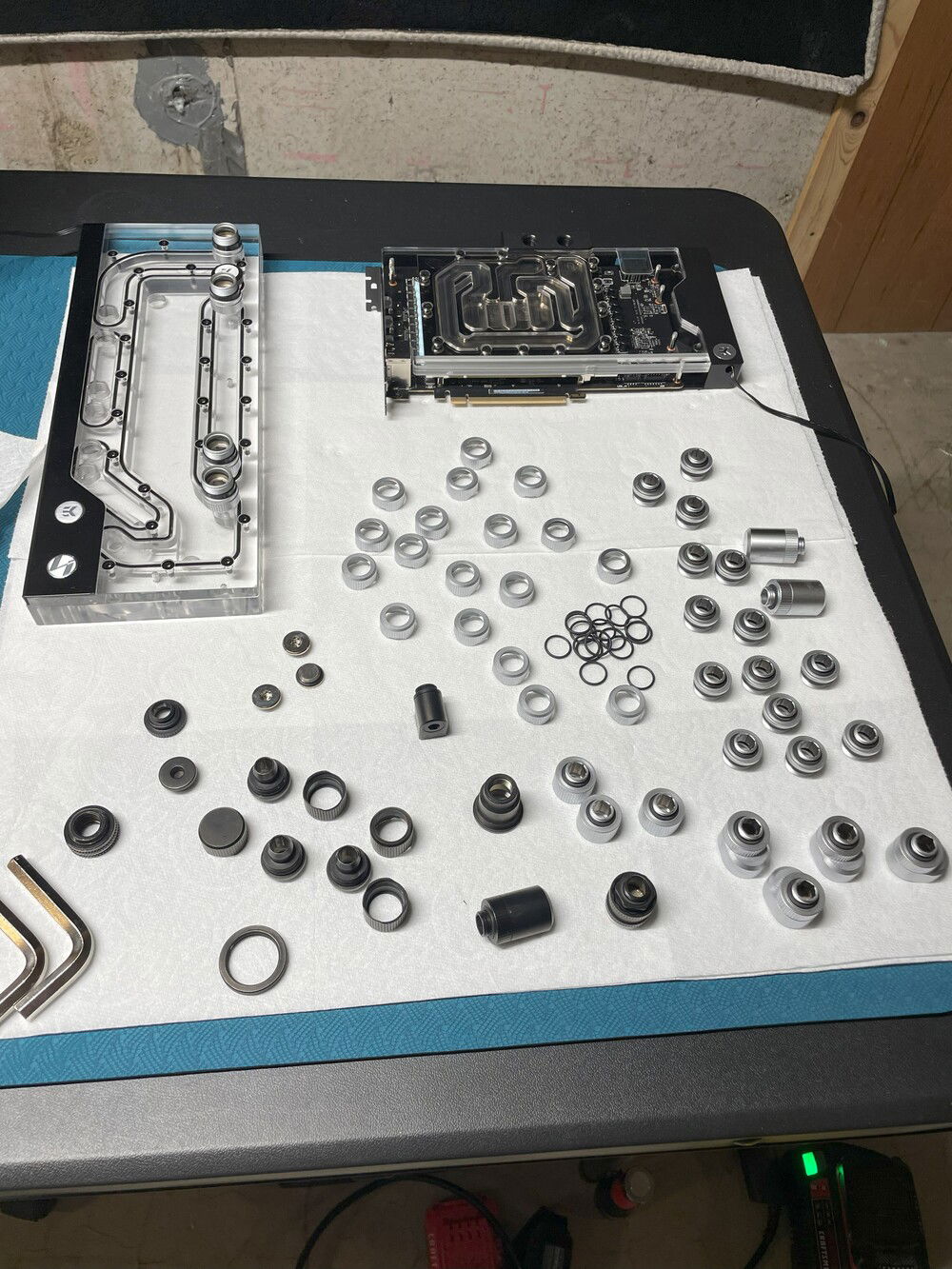

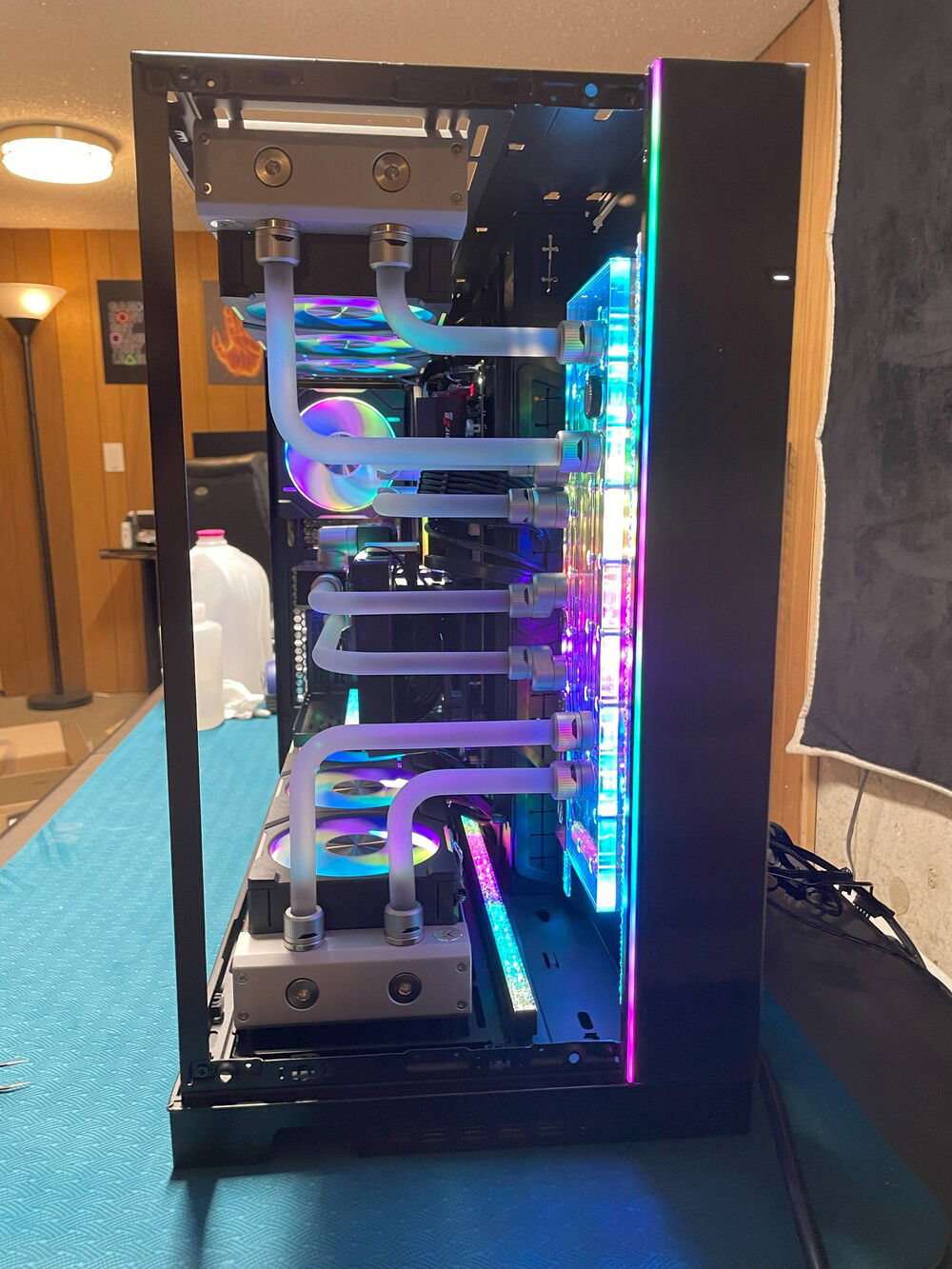

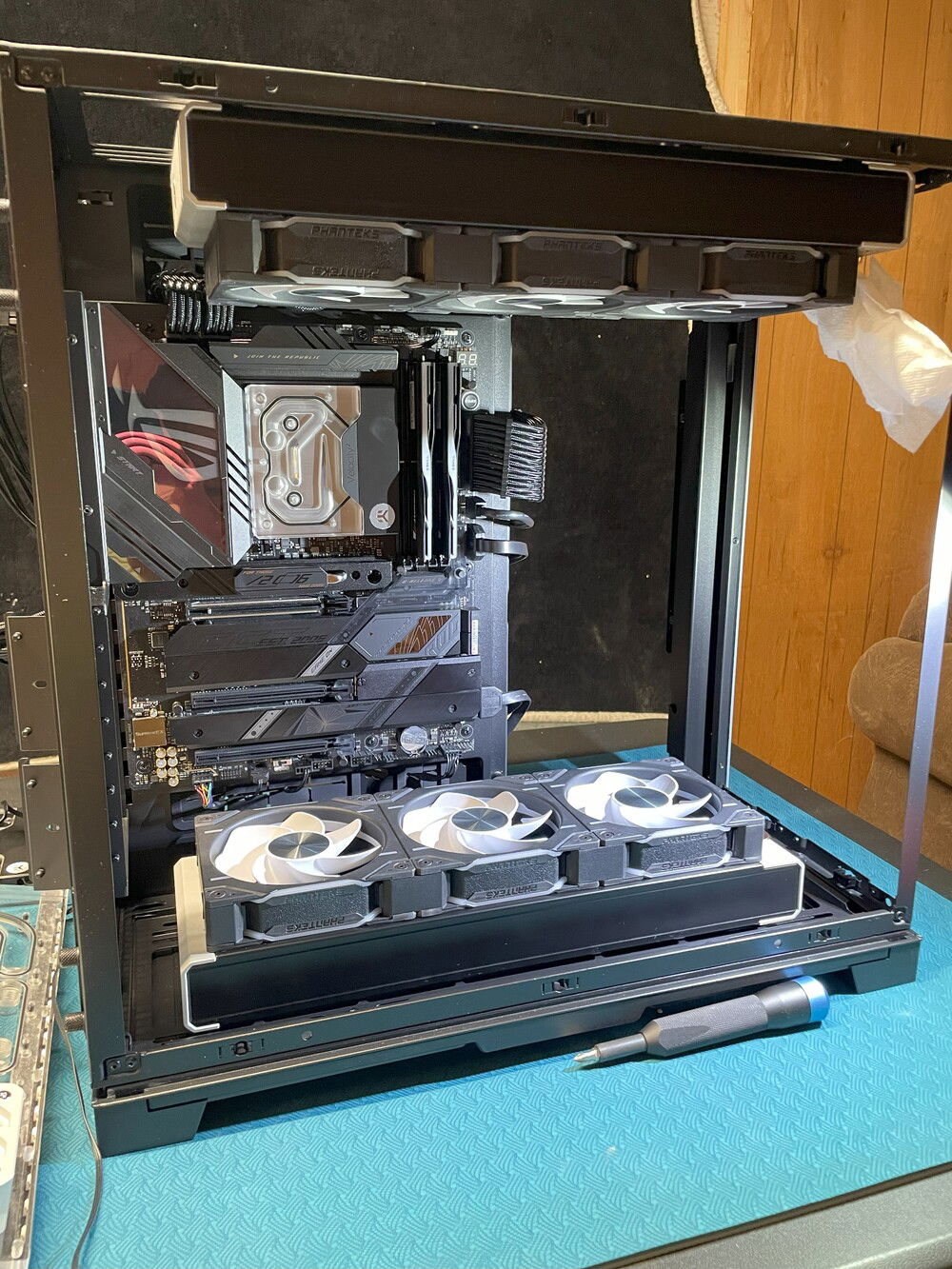

I wanted to play on the best and I hadn't built in a Lian Li case for myself yet so I took the plunge. I used an older EKWB Lian Li distro plate but other than having to finesse some hard lines to line up it was a pleasure to build in. It's got all the top end parts. I couldn't justify a 14900k so I went with the 13900K since I had one from a previous build. I also wanted to have the vertical GPU which I wasn't able to make happen on my last build.

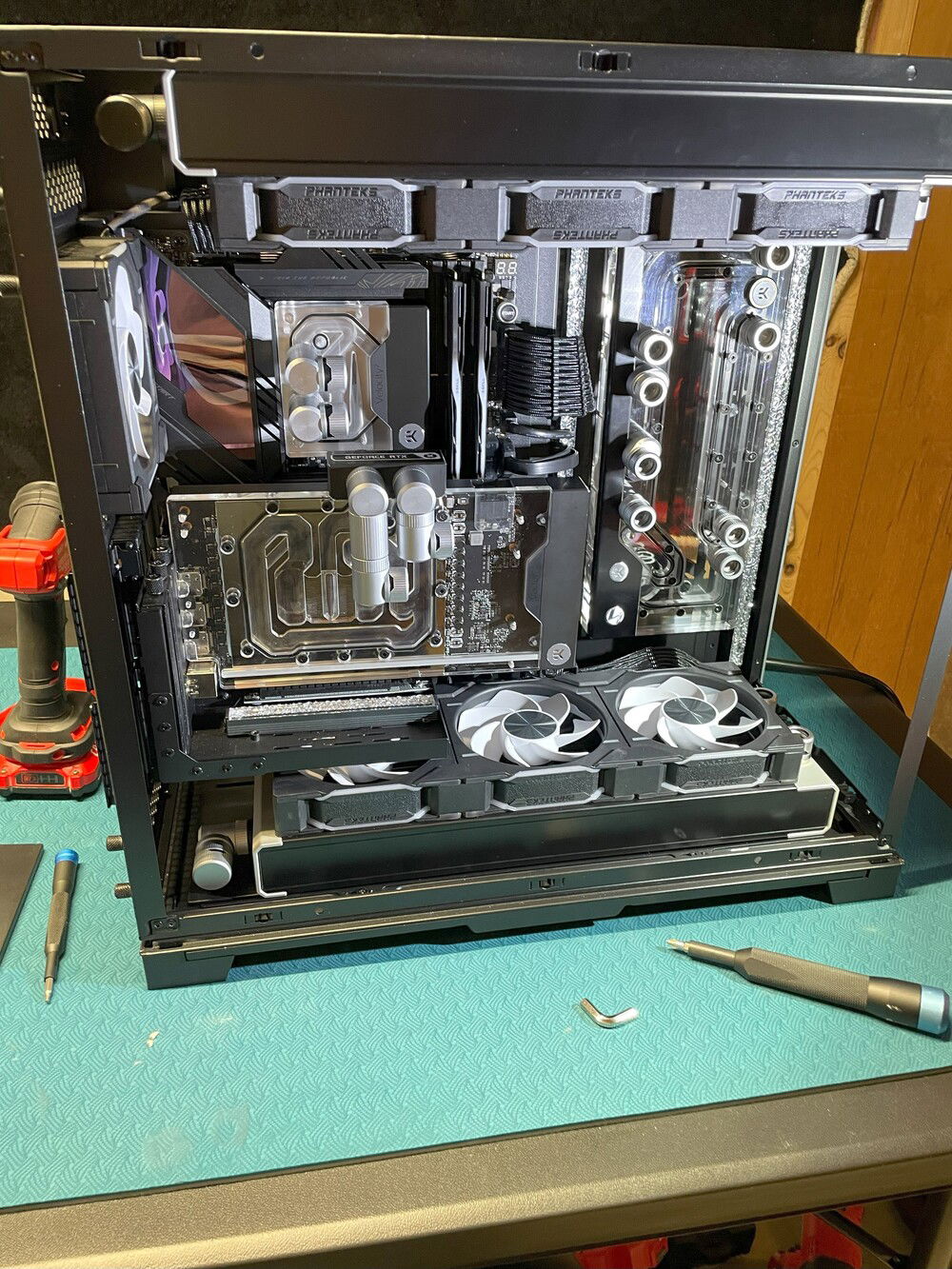

Edit : I have updated the Vertical GPU bracket to a Phanteks premium v2.0. I needed to make modifications to the bracket to fit the unique latch mechanism of the EVO XL case. I basically shaved down the 3 stamped humps and drilled out the thumbscrew holes to fit. Other than that it fits perfectly.

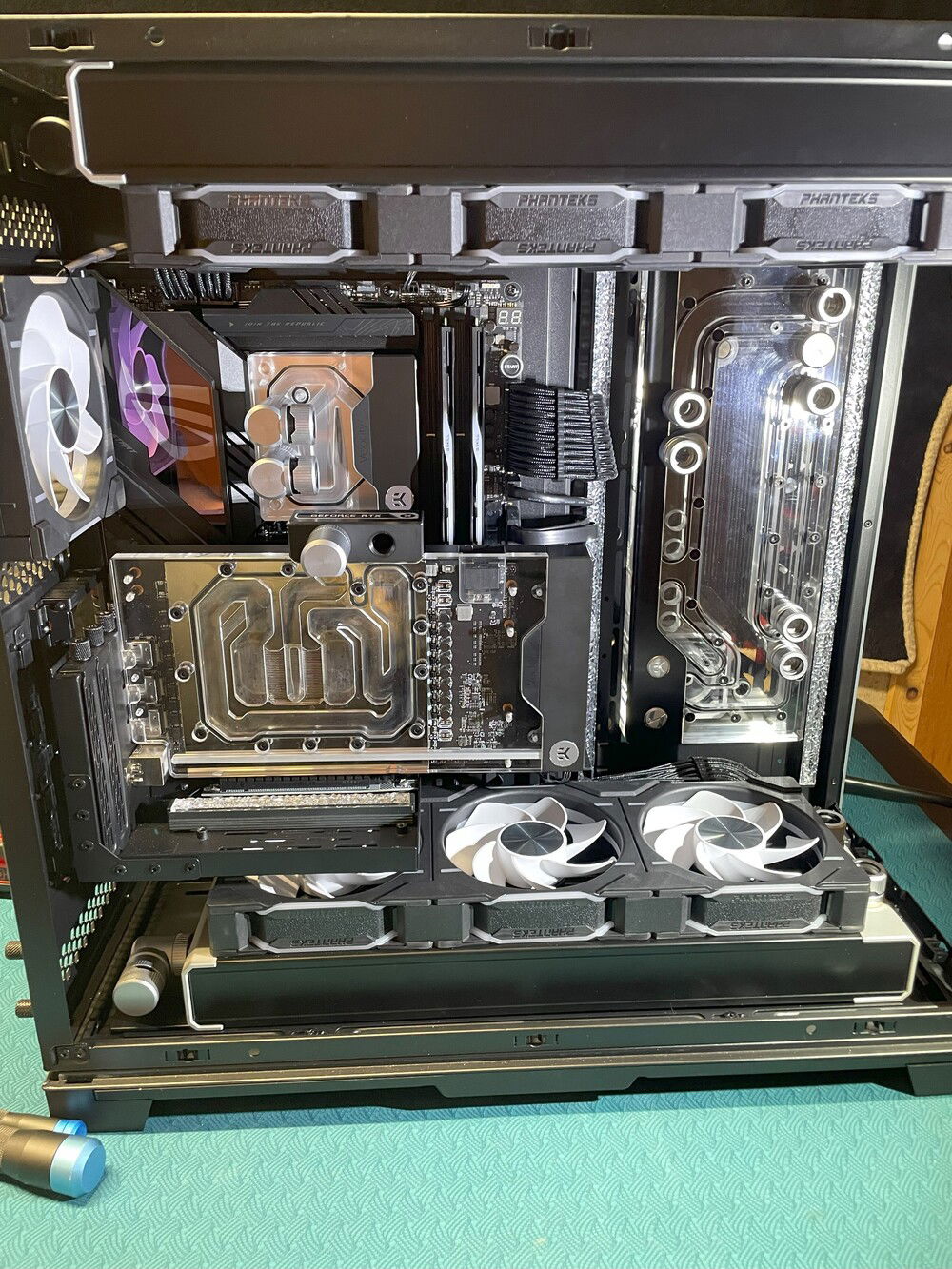

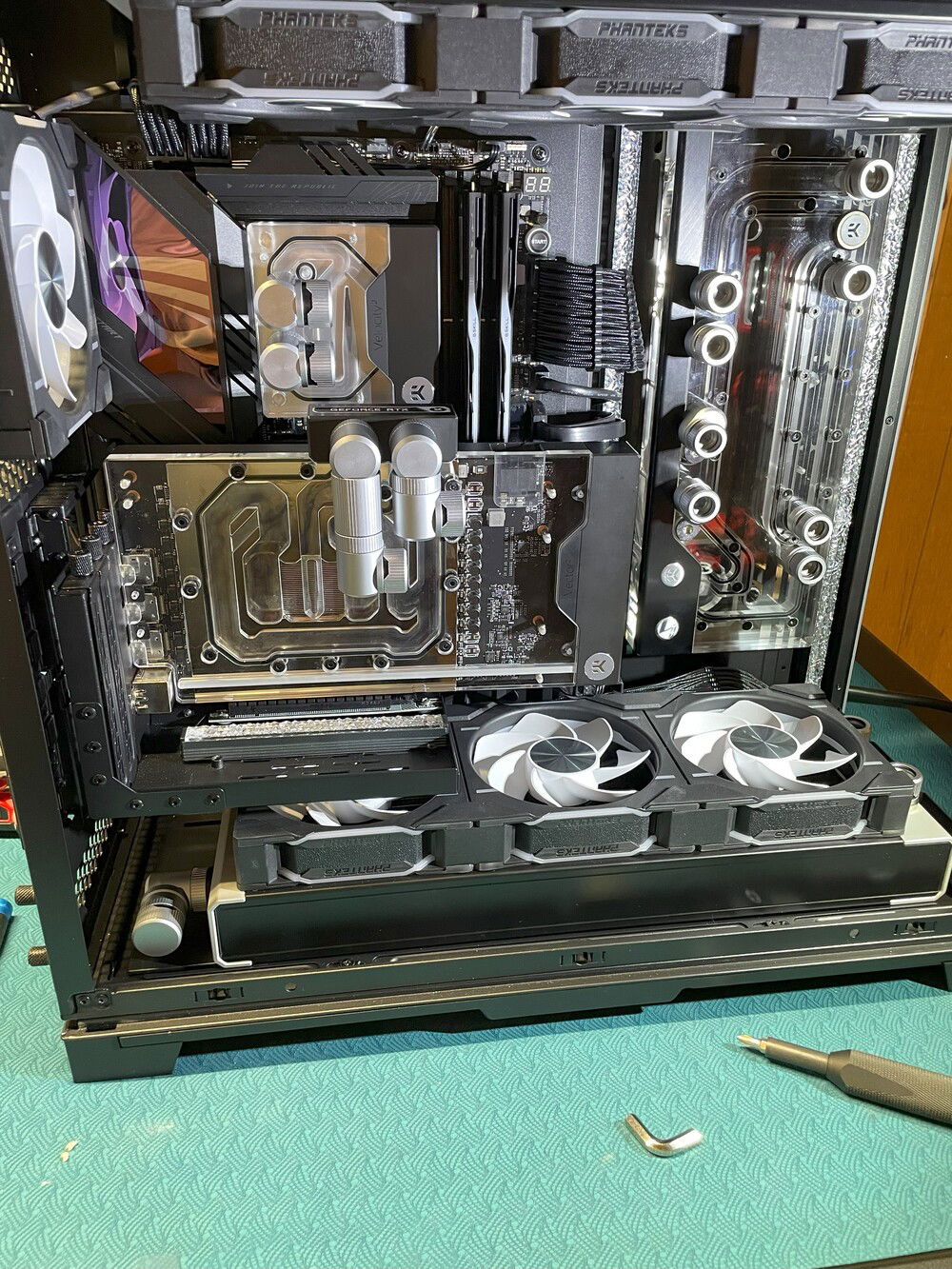

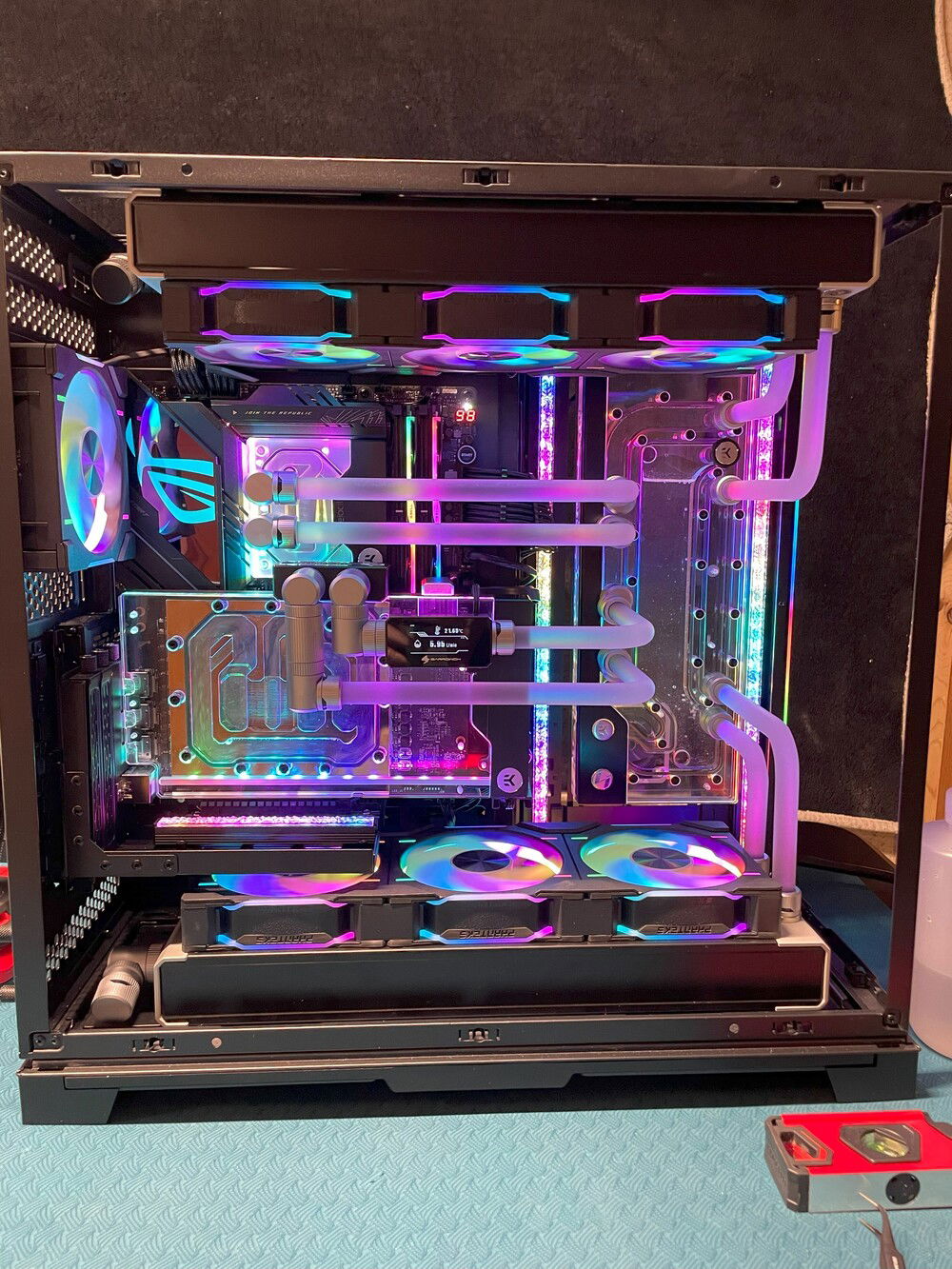

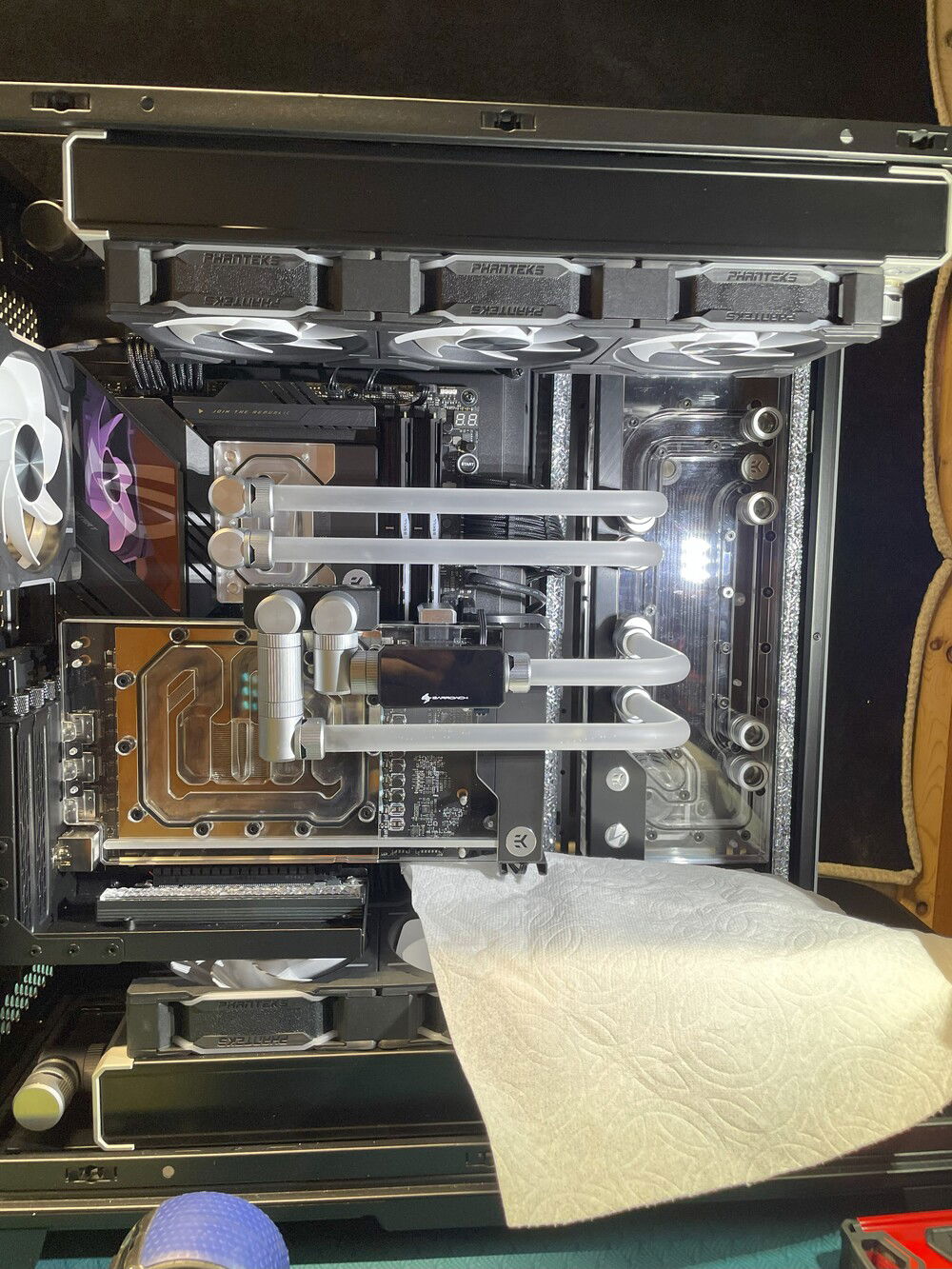

I also swapped to a different GPU waterblock with side ports that I felt looks much cleaner.

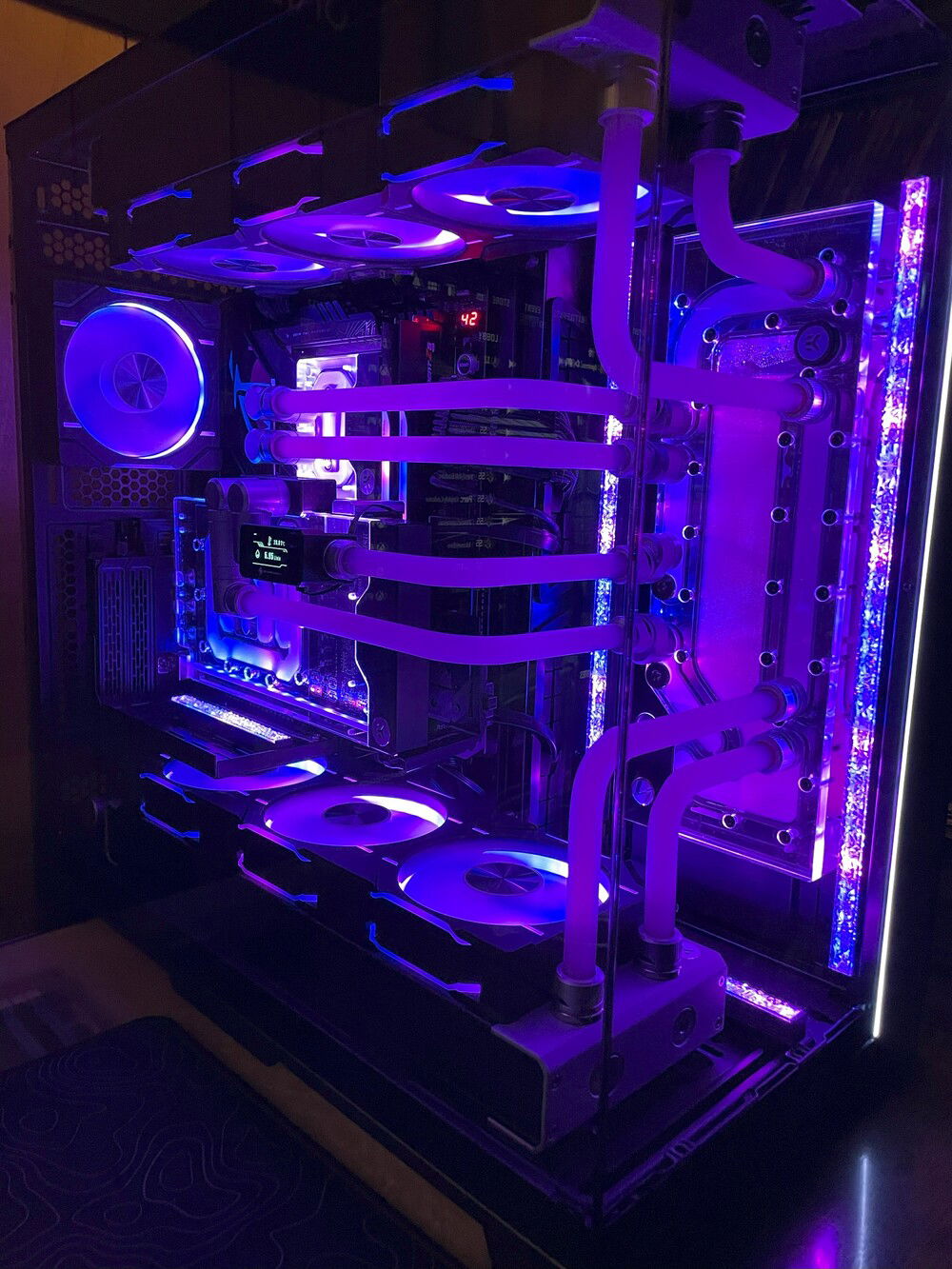

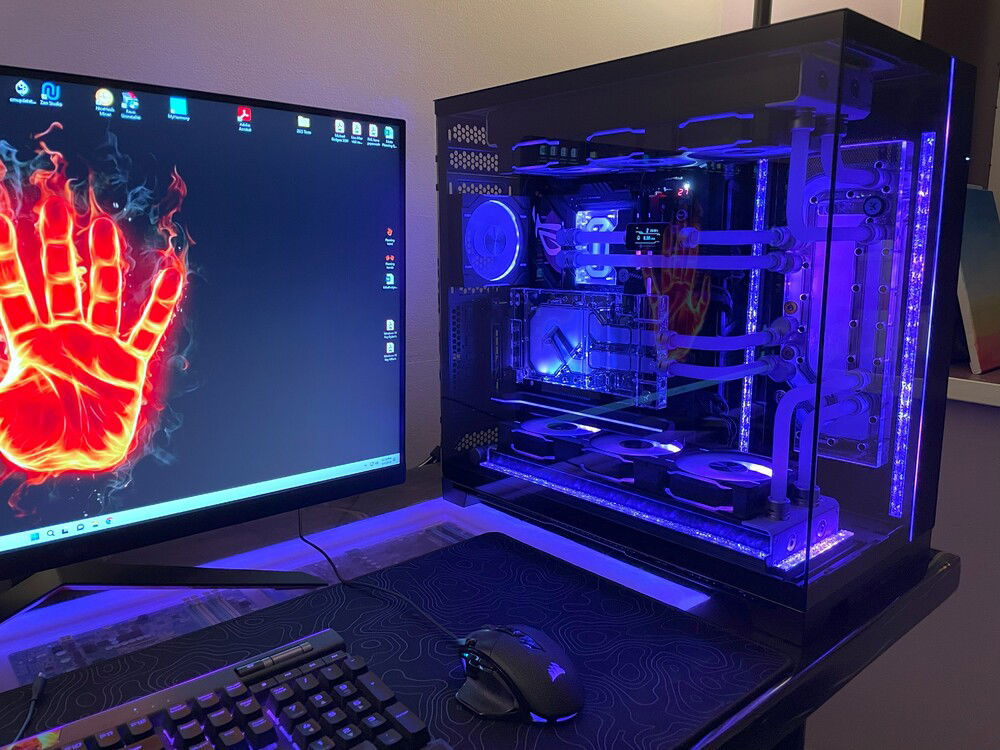

Last item of update was adding a Razer PWM fan controller and 2 Razer Chroma RGB controllers along with Signal RGB to handle all the RGB effects.
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: XL-ATX
Type: General Build

Hardware

CPU
$ 500.72
Intel - Core i9-13900K
Socket: LGA 1700
Cores: 24
Integrated Graphics: Yes
Motherboard
$ 359.99

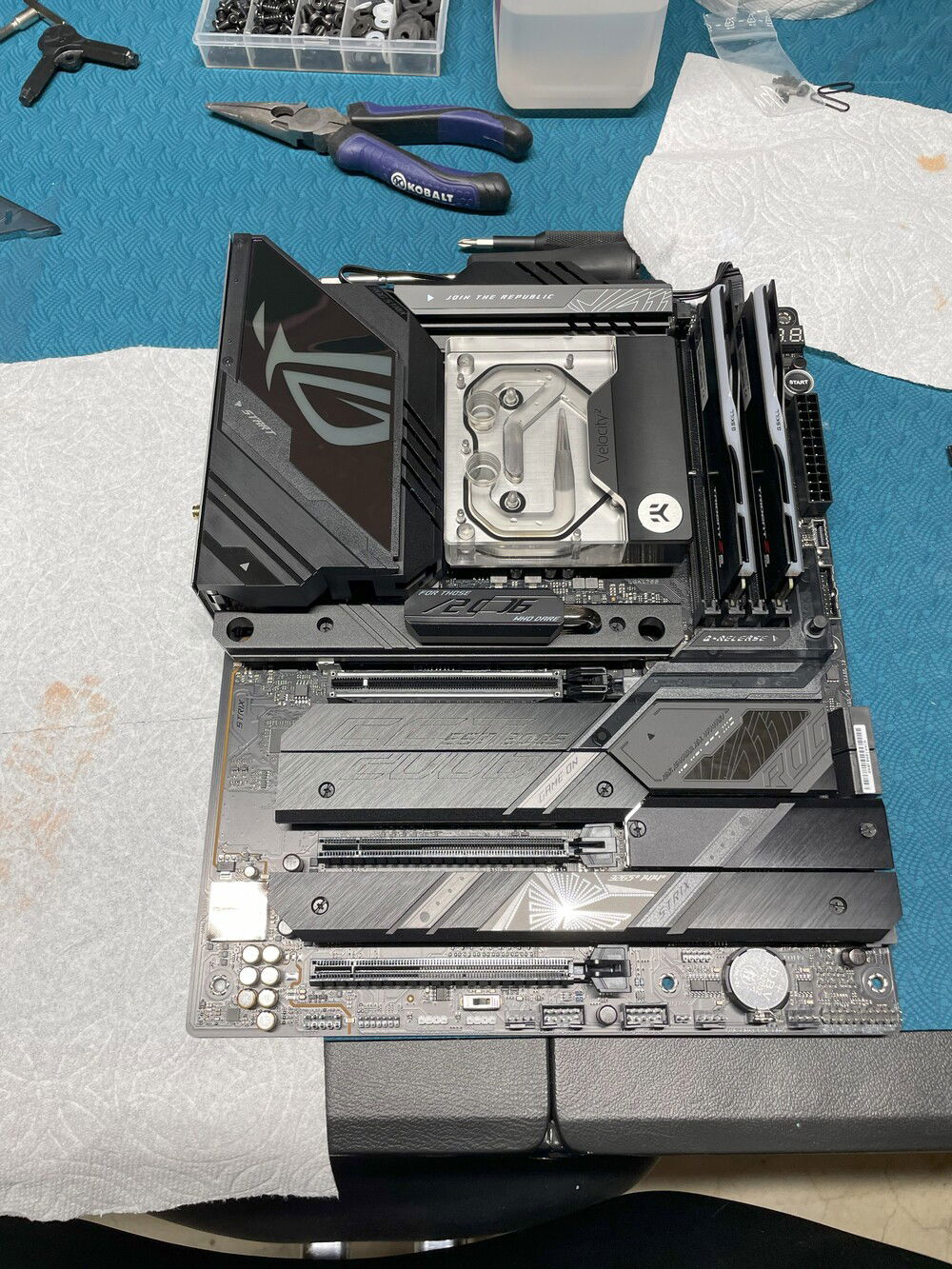

ASUS - Rog Strix Gaming (WiFi) (Z790-E)
Chipset: Z790
CPU Socket: LGA 1700
Size: ATX
Memory
$ 413.98
G.Skill - Trident Z5 (6000MHz) (Black) (2x)
Type: DDR5
Capacity: 64 GB
Graphics
$ 1,849.99
ASUS - TUF 24G Gaming OC
Chip Manufacturer: NVIDIA
Chip: RTX 4090
Interface: PCIe x16
Storage
$ 210.00
Sabrent - Rocket (Extreme Performance)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 499.99
Sabrent - Rocket 4 Plus-G
Form Factor: M.2
Interface: PCIe x4
Capacity: 4 TB
PSU
$ 399.99
Thermaltake - GF3 TT Premium
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 185.64
Lian Li - 011 Dynamic Evo XL
Type: Full-Tower
Side Panel: Tempered Glass
RGB: Yes
Case Fan
$ 269.97
Phanteks - PH-F120D30 (Black) (3x)
Size: 120 mm
Case Fan
$ 269.97
Phanteks - PH-F120D30 (Black) (3x)
Size: 120 mm
Cooling
EKWB - CPU Blocks (discontinued)
Type: Custom Loop
305
