Tower Level 10

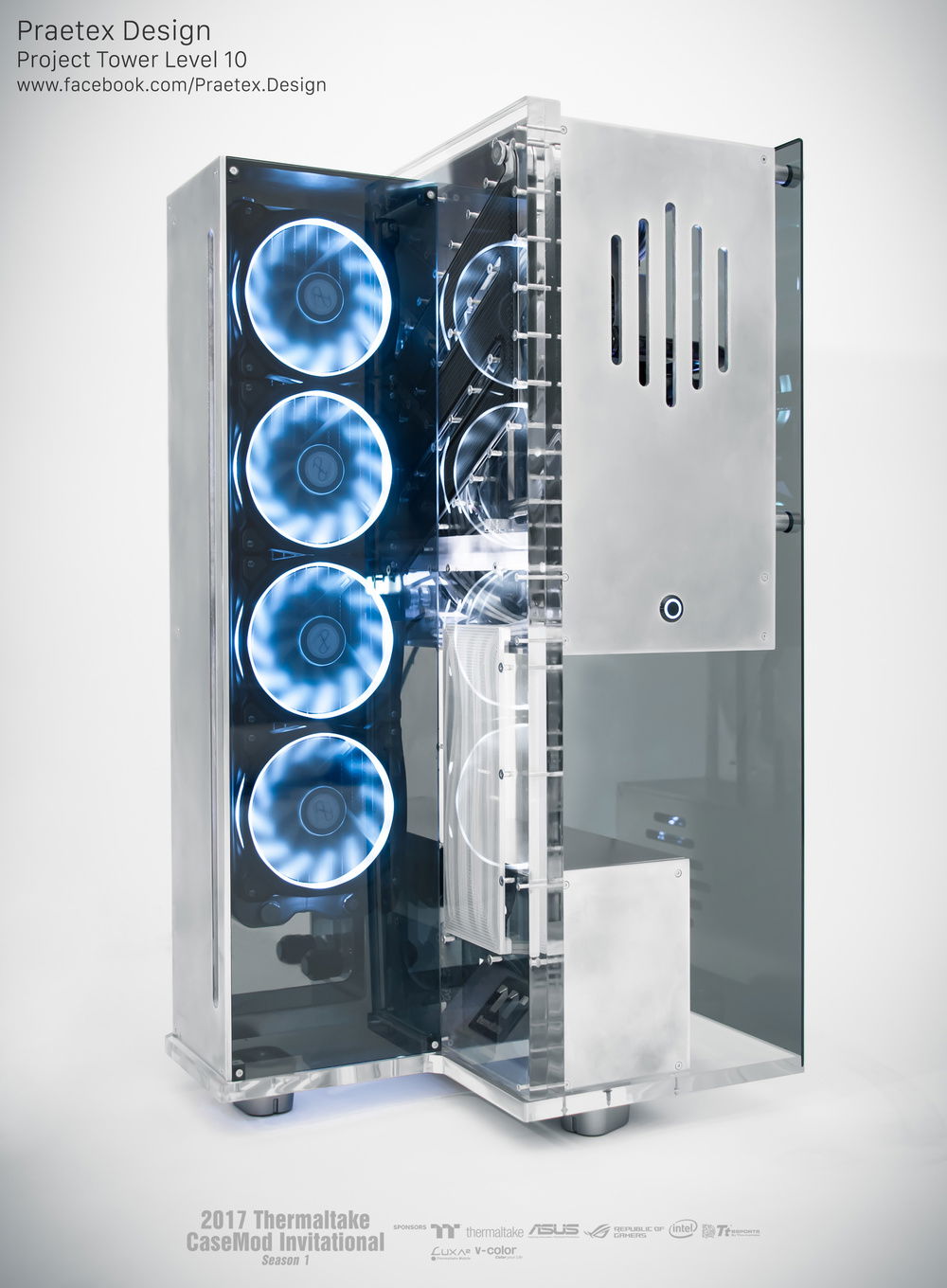

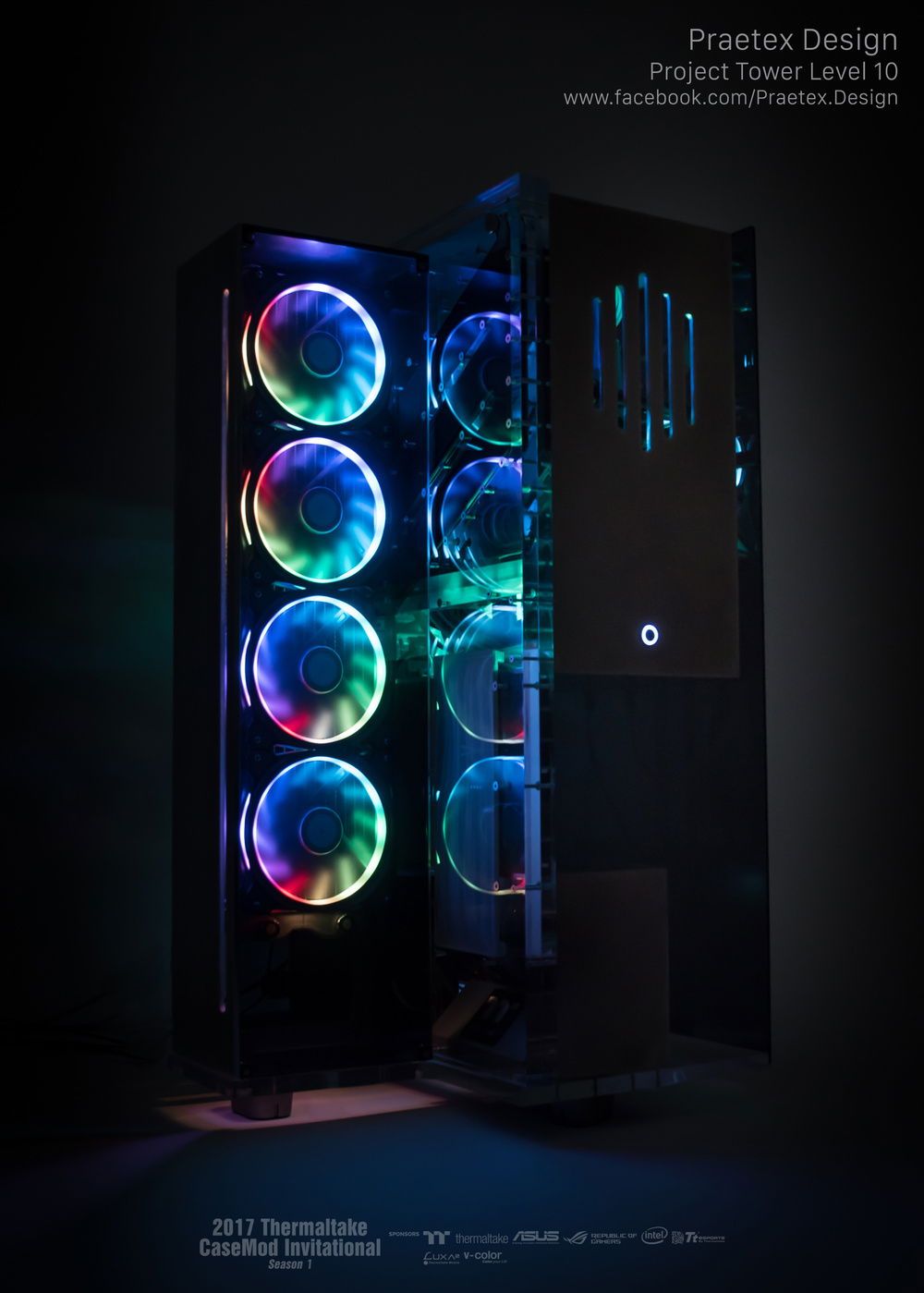

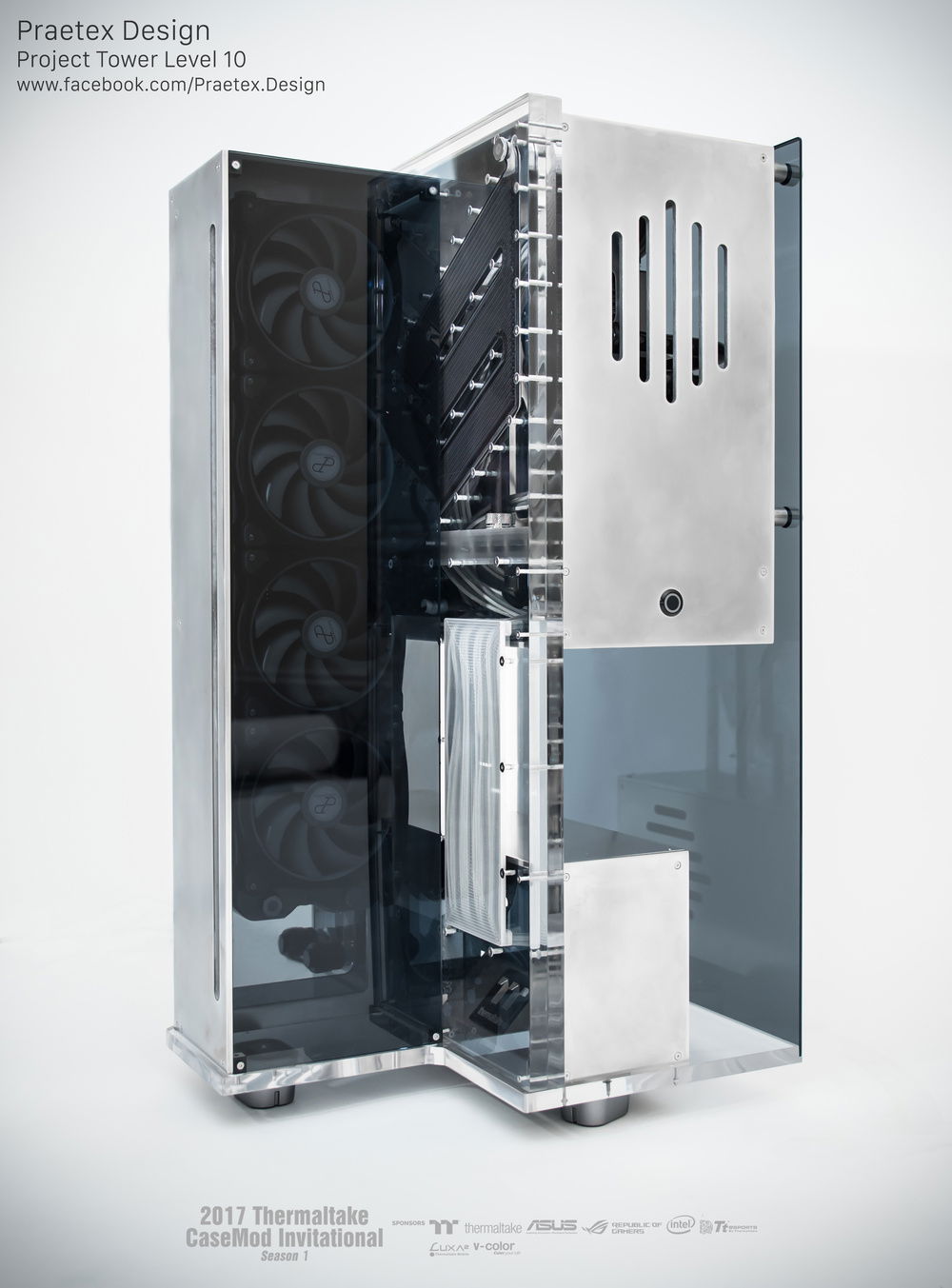

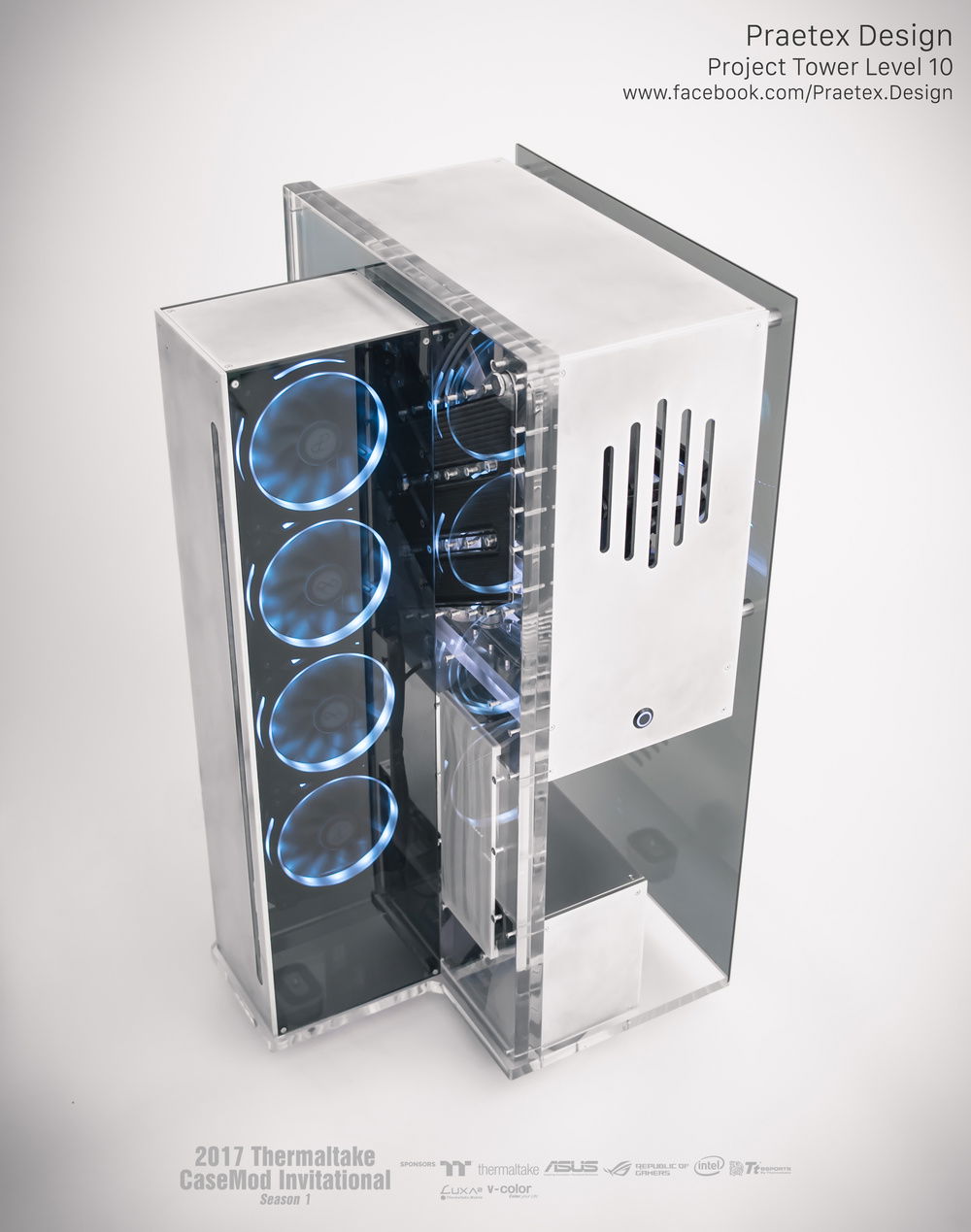

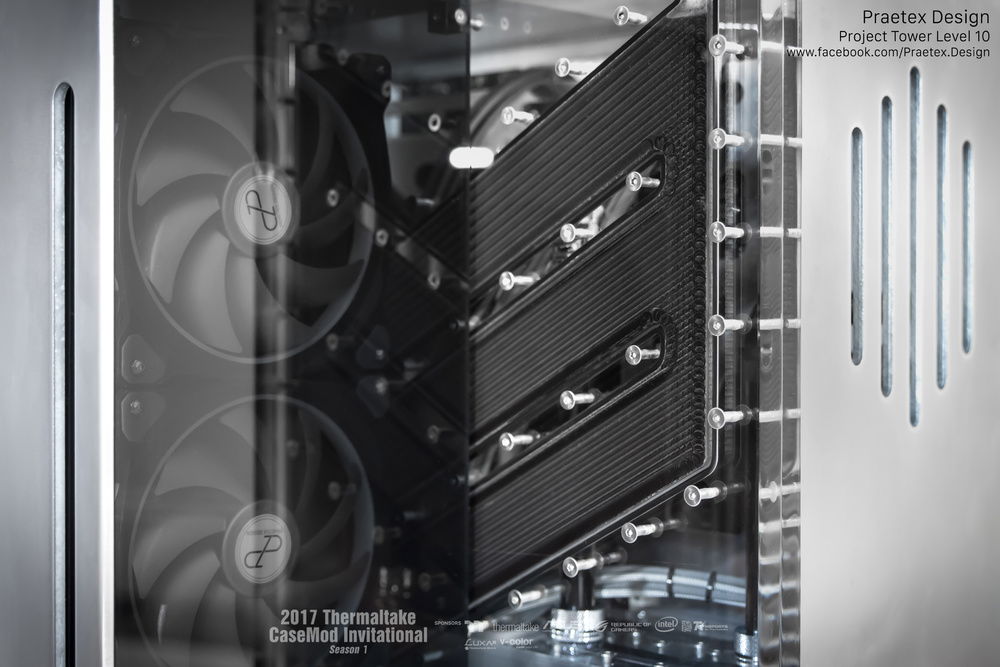

Build for Thermaltake's 2017 Casemod Invitational Season 1, this is a very heavily modified Tower 900. I took design cues from the earlier Level 10, planning out a modular compartment design. Each section is self contained, with access between the parts granted via a huge acrylic distribution plate, which also acts as the case superstructure.

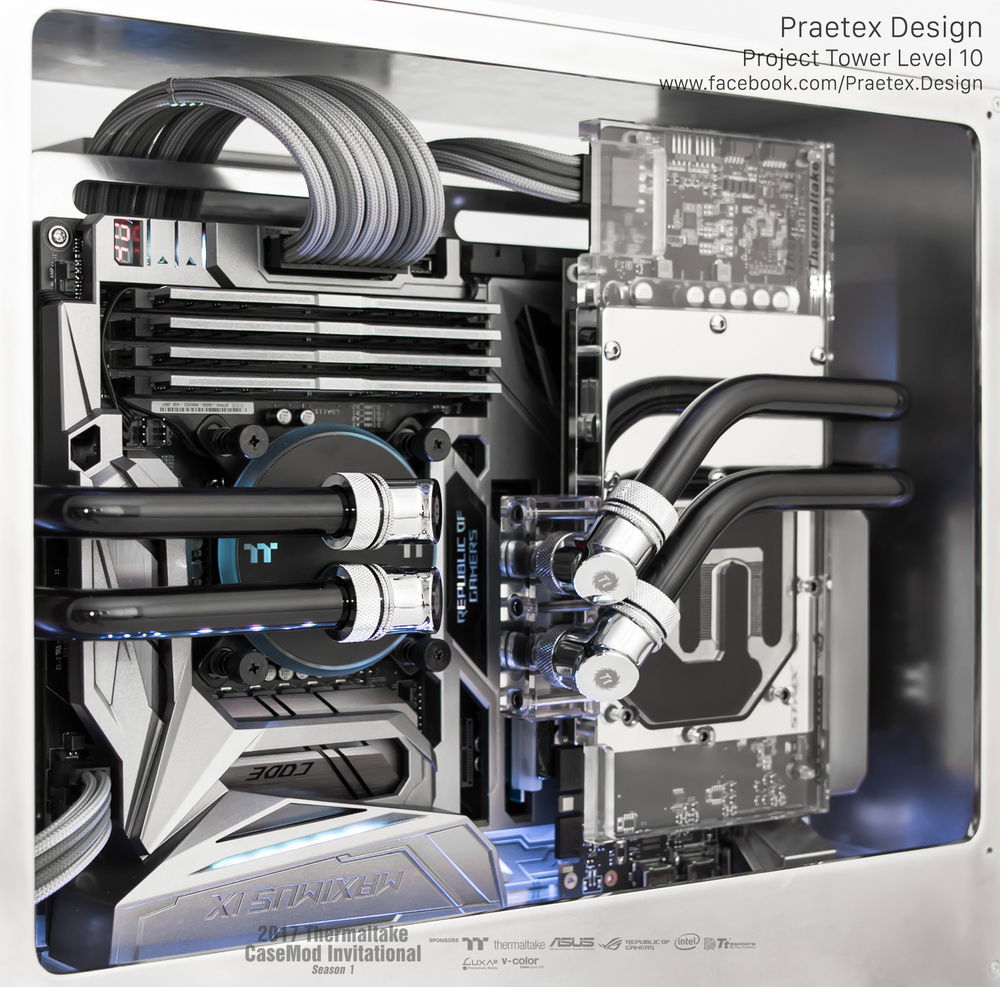

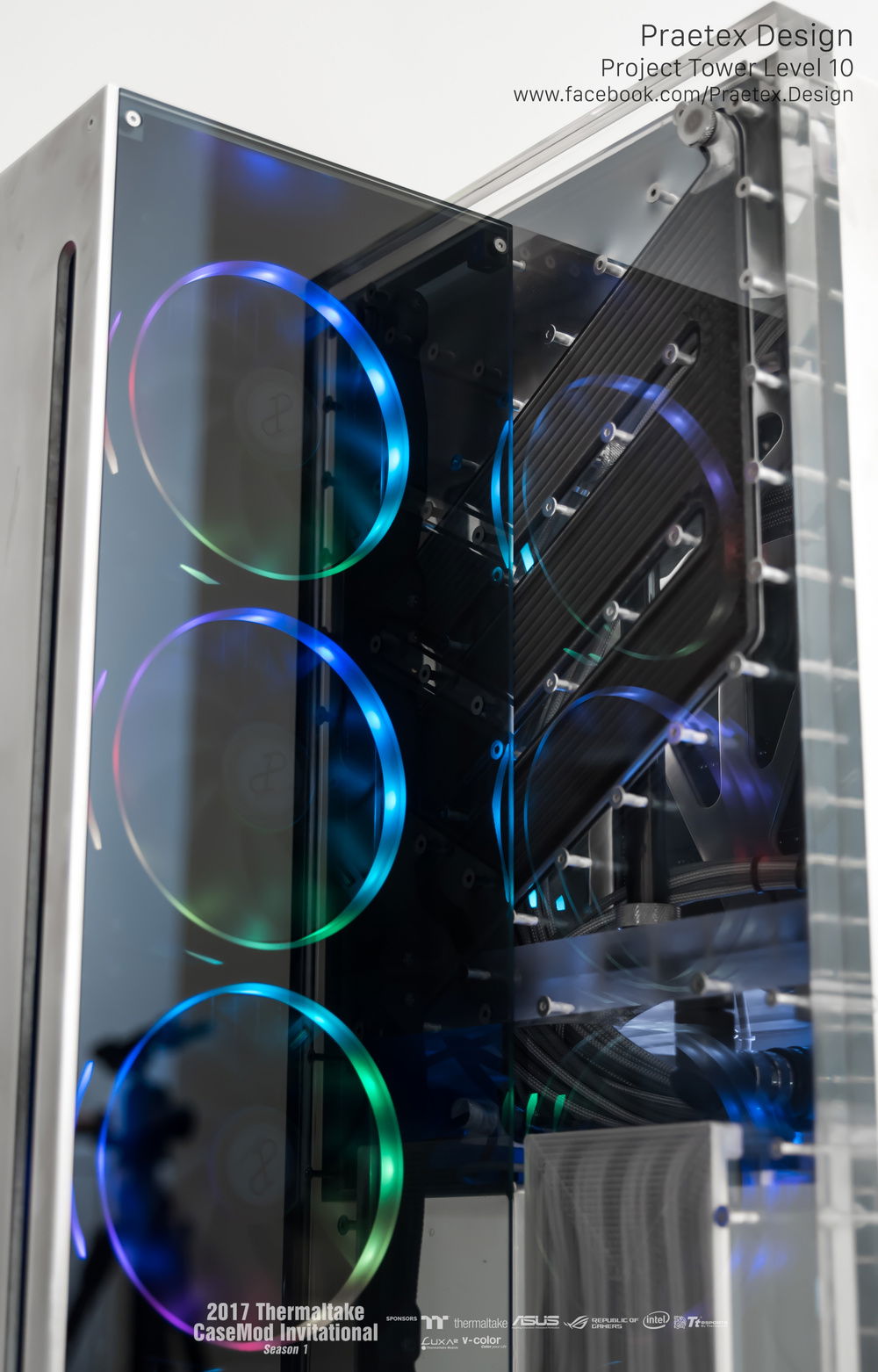

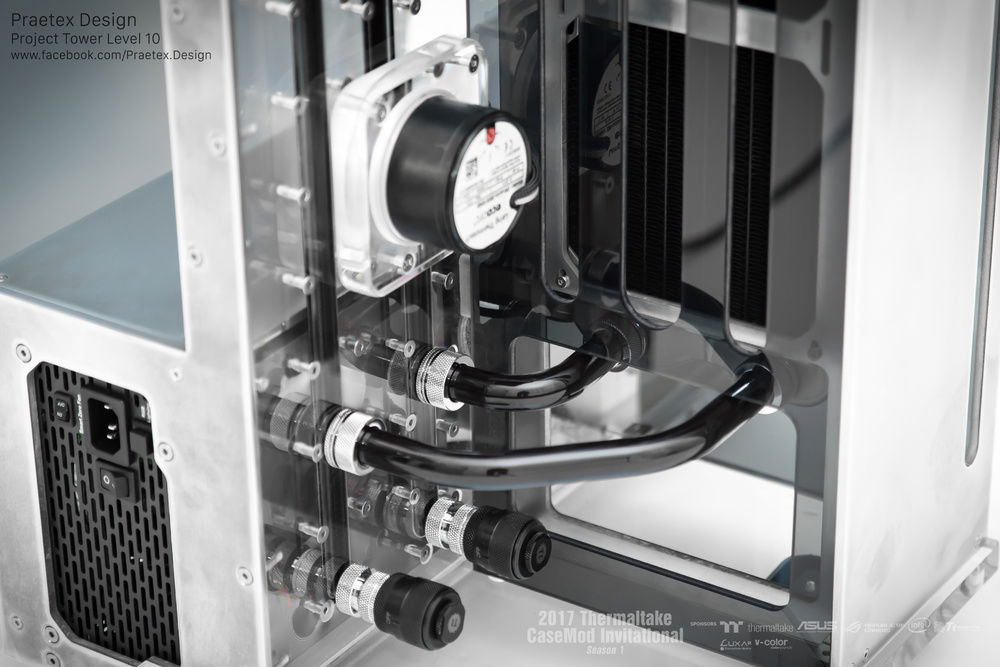

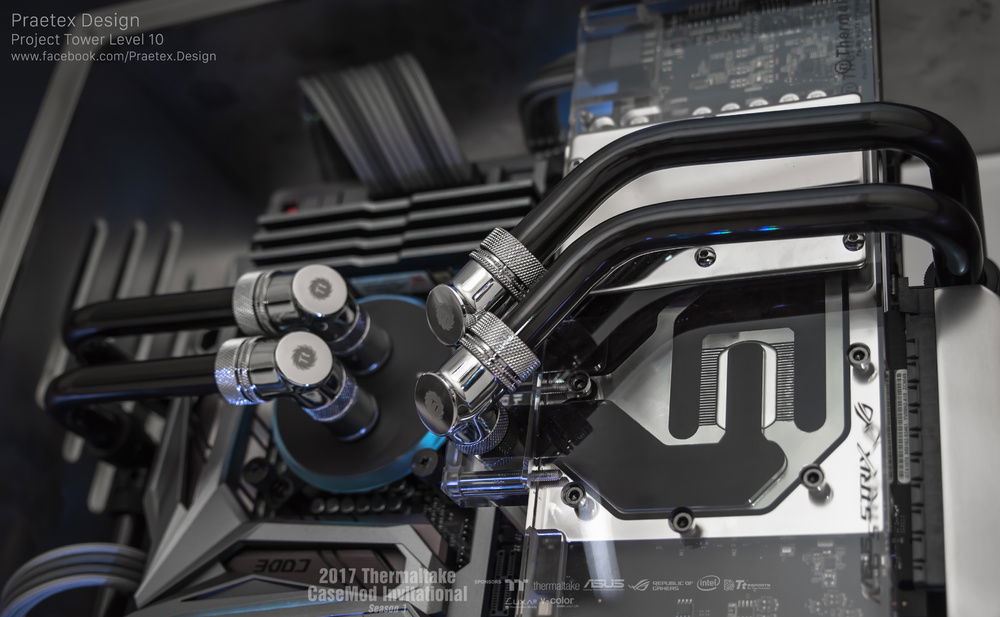

The main parts were waterjet cut from 5mm aluminium, with internal distro plates cut from 15mm acrylic plates. The cable routing goes through the plate itself, keeping mess to a minimum and ensuring the lines of the case are kept clean. The rig is cooled by a side mounted 560mm radiator that is separate to the main components.
Color(s): Black Silver
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: XL-ATX
Type: General Build

Hardware

CPU
$ 151.70
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 220.00
ASUS - ROG Maximus IX Hero
Chipset: Z270
CPU Socket: LGA 1151
Size: ATX
Memory
V-Color - Skywalker LED DDR4
Type: DDR4
Capacity: 8 GB
Graphics
$ 583.88
ASUS - ROG Strix
Chip Manufacturer: NVIDIA
Chip: GTX 1070
Storage
V-Color - VLM100 RGB
Form Factor: M.2
Interface: M.2 (B+M)
Capacity: 120 GB
PSU
Thermaltake - DPS G RGB 850W Gold
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 296.03
Thermaltake - Tower 900, Black
Type: Super-Tower
Side Panel: Tempered Glass
